HZS Series Rotary Screen
Category: Screening equipment
HZS Series Rotary Screen mainly consists of motor, reducer, drum units, racks,etc. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis. When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer screen, substandard materials come out by the end of rotary screen.
Product overview:
HZS Series Rotary Screen mainly consists of motor, reducer, drum units, racks,etc. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis. When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer screen, substandard materials come out by the end of rotary screen.
This series of rotary screen work fine, durable frame with steel welding, large funnel volume , welded steel plate. Drum unit is sealed by the cover of body, to ensure equipment in the work process, prevent dust escape and eliminate dust pollution. When replace screen, simply open the lid of the body to change, easy to operate.
The main technical parameters of HZS Series Rotary Screen:
| Model | HZS-1.0 | HZS-1.2 | HZS-1.5 | HZS-1.8 | HZS-2.0 | HZS-2.2 |
| Drum diameter (mm) | 1000 | 1200 | 1500 | 1800 | 2000 | 2200 |
| Drum length (mm) | 3500 | 3500 | 4000 | 7000 | 6000 | 8000 |
| Obliguity（°） | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed（r/min） | 17 | 17 | 17 | 15 | 15 | 15 |
| Motor power(kw) | 4 | 4 | 5.5 | 18.5 | 18.5 | 22 |

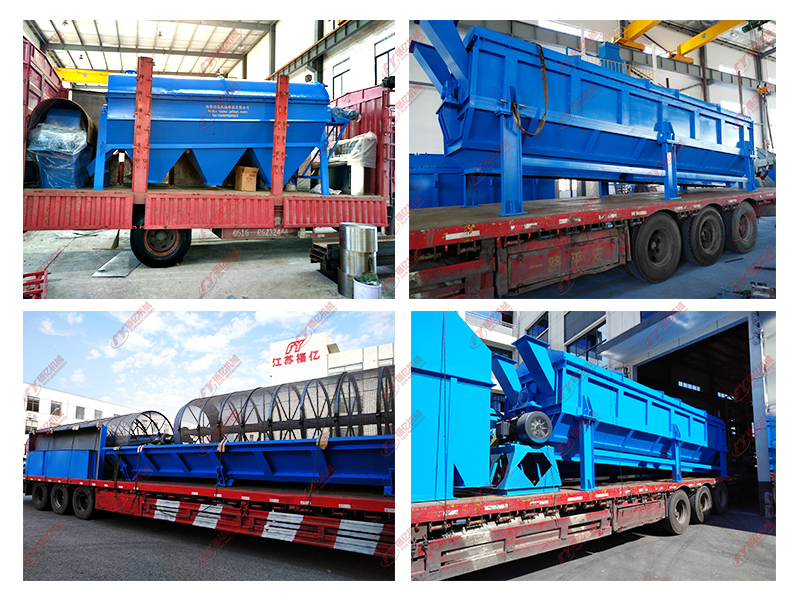

Delivery on site
